Anemometers
WR5 & WL12

Anemometers with a wide range and data logger.
REQUEST A QUOTATION Click to view Anemometers
WR5 & WL12

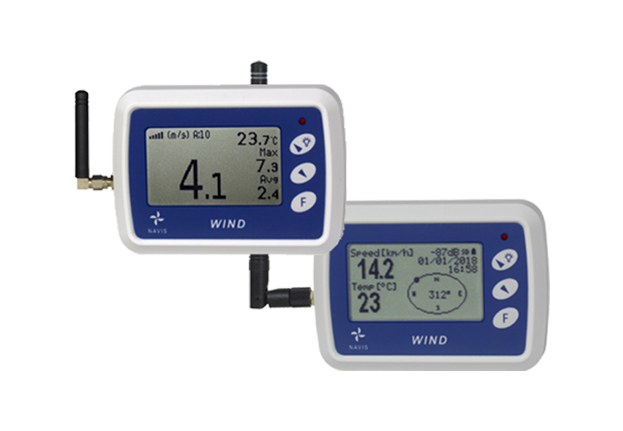

Product photo of the WR5 and WL12 wind meters from Navis

Info

The RDS wireless anemometer accurately measures wind speed and temperature. With the optional WSD sensor, you can also add wind direction. Data is clearly displayed and stored on a micro SD card, complete with date and time.

The standard range is 250 meters, extendable up to 1000 meters with an external antenna and additional sensor.

Discover the versatility of the WR5 and WL12 below!

Anemometers workers on construction site

Features WR5

Features WL12

  • Easy installation without cables
  • Displays all important wind data
  • Range up to 500m
  • Works on battery (long battery life) or external power supply
  • Large, backlit LCD display
  • Compatible with a range of NAVIS wind sensors
  • Wind tunnel calibrated
  • User-friendly solution for evaluating wind sites
  • Displays and stores all important wind data
  • Stores more than one year of wind history data
  • Easy installation without cables
  • Range up to 300m (1000m with external antenna & sensor for extended range)
  • Up to 1-year battery life (works on battery or external power supply)
  • Built-in battery backup for the real-time clock
  • Large, backlit LCD display

Functions WR5

Functions WL12

  • Current, average, and peak wind speed
  • Wind direction (optional)
  • Temperature
  • 24-hour history graphs for wind speed, wind direction, and temperature
  • Maximum wind speed alarm - acoustic and optical
  • Current wind speed
  • Wind direction
  • Temperature
  • 24-hour history graphs for wind speed, wind direction, and temperature
  • 7-day history of maximum and average wind speed
  • Date and time
  • Maximum wind speed alarm - acoustic and optical
  • Save to SD card:
    - average and maximum wind speed in selected interval
    - average wind direction (with WSD sensor)
    - temperature
    - all data is time and date stamped

Sensors WR5

Sensors WL12

  • Extended range wind speed sensor
  • Extended range wind speed and direction sensor
  • Extended range wind speed sensor
  • Extended range wind speed and direction sensor

Technical details WR5

Technical details WL12

Average wind speed Selectable average: 1, 5, or 10 minutes
Wind speed resolution 0,1 m/s
Operating temperature -10 ... +50°C
Battery 3 x 1,5 V AA battery (not included)
External power supply 5 VDC USB (cable not included)
Housing ABS, 115 x 83 x 32 mm
Logging interval Selectable: 10 sec, 1 min, 10 min, 60 min
Memory card Micro SD
Battery 4 x 1,5 V AA battery (not included)
External power supply 5 VDC USB (adapter not included)
